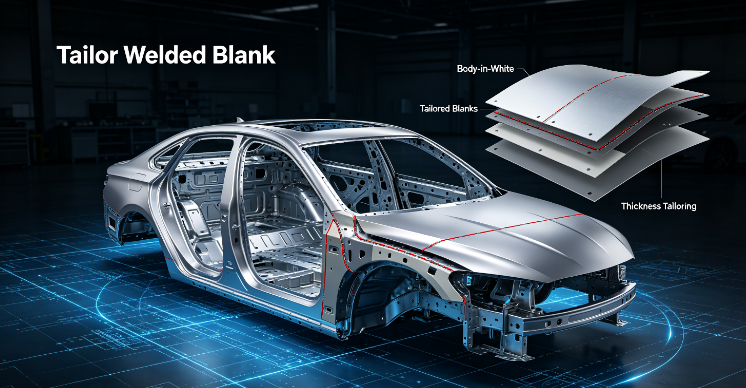

Tailor welded blank manufacturing is the process of producing a single sheet metal blank by joining two or more steel sheets with different thicknesses, grades, or mechanical properties before forming. Laser welding is commonly used to create a precise joint between the individual sheet sections.
A tailored blank is designed around the requirements of the finished component. Thicker or high strength steel can be positioned in areas that require greater structural performance, while thinner or more formable material can be used where lower loads are expected.
This approach allows manufacturers to optimize material utilization, reduce unnecessary weight, and integrate different material specifications into one welded blank.
Tailor welded blank manufacturing is widely used for automotive body components, including the door inner panel, floor panels, pillars, wheel housings, and structural reinforcements.
A tailor welded blank is made by joining different sheet sections along a designed weld line before the blank enters the forming operation.
The individual sheets may differ in:
For example, a single automotive panel may require high strength steel around a structural mounting area and thinner material in a lower-load region. Instead of producing separate components, these materials can be joined before forming and stamped as one part.
This gives engineers greater control over where material is used and how the finished part performs.
Tailor welded blanks TWB manufacturing normally follows a controlled sequence from material selection through welding, inspection, blank preparation, and forming.
The main stages include:
The first step is selecting compatible materials according to the requirements of the final component.
Material selection may involve different steel grades, thicknesses, coatings, and strength levels.
Individual sheets are cut to the required dimensions. Edge quality and dimensional accuracy are important because the prepared edges form the welding interface.
The mating edges are prepared and positioned with the required accuracy.
The joint design depends on sheet thickness, material combination, welding method, and subsequent forming requirements.
The prepared sheets are joined using laser welding.
A focused laser beam provides concentrated heat at the joint, producing a narrow weld zone and controlled heat input.
The weld is inspected to verify its geometry, continuity, penetration, strength, and overall quality.
Inspection methods can be selected according to the material combination and customer requirements.
After welding, the combined material is processed into the required blank geometry when necessary.
The welded blank is transferred to stamping or another forming operation to produce the required component.
The weld location and material combination must be suitable for the deformation that occurs during forming.
Laser welding is widely used in tailor welded blank production because the process can provide accurate and repeatable joints.
The laser beam concentrates energy into a relatively small area. This allows manufacturers to control the weld zone while maintaining production speeds suitable for automated manufacturing.
Important laser welding parameters include:
For different steel combinations, welding parameters should be developed according to the specific material and thickness combination.
Beam welding describes welding processes that use a concentrated energy beam to join materials. Laser welding is a commonly used beam-based welding process for tailor welded blanks.
Linear welding refers to creating a continuous weld along a defined line between sheet sections.
For TWB production, the weld line needs to remain consistent because the welded joint becomes part of the blank that will subsequently be formed.
The weld path can be straight or follow a specified geometry depending on the component design.
Material selection is one of the main design considerations for a TWB.
High strength steel can be positioned in areas that require greater load-bearing capability.
Combining high-strength material with thinner or more formable steel can help reduce the need to use a thick sheet across the entire component.
Advanced high-strength steels can be used for structural automotive applications where strength and weight reduction are both important considerations.
Different AHSS grades may be combined within one blank when their welding and forming characteristics are compatible.
Mild steel provides good formability and can be selected for areas where extreme strength is not required.
Galvanized and other coated steels can be incorporated into tailor welded blanks when corrosion protection is required.
The coating condition must be considered during laser welding and subsequent forming.
Selected stainless steel grades can also be used where corrosion resistance or specific mechanical properties are required.
Cold rolling is a steel processing method used to achieve controlled sheet thickness, surface quality, and mechanical properties.
Cold-rolled sheets are commonly used as the starting material for many tailor welded blank applications.
The final TWB design can combine cold-rolled sheets with different thicknesses or grades before welding.
This allows the material specification to be adapted to the requirements of the finished component.
A tailored blank is not simply a combination of two sheets. The material layout is developed according to the requirements of the final part.
Engineers may consider:
The position of the weld line is especially important. A poorly positioned weld may experience excessive deformation during deep drawing or stamping.
Deep drawing forms a flat sheet into a three-dimensional component by drawing the material into a die.
Tailor welded blanks can be used in deep drawing applications when the selected materials and weld configuration can withstand the forming conditions.
During deep drawing, the welded joint may experience tension, compression, bending, and material flow.
Therefore, the following factors should be evaluated before production:
Forming simulation and prototype trials can help determine whether a particular TWB configuration is suitable for the intended component.
Tailor welded blank manufacturing is strongly associated with automotive sheet metal production.
The door inner panel is a typical application because different regions of the panel can have different strength and thickness requirements.
A TWB can integrate stronger material around reinforcement areas while using lighter material in other regions.
A-pillars, B-pillars, and other structural components can use different material specifications within one blank.
Floor panels can benefit from localized reinforcement without making the complete component unnecessarily thick.
Tailor welded blanks can combine different grades and thicknesses for body side components according to local structural requirements.
Wheel housing components may require a balance of strength, formability, corrosion resistance, and weight.
A stronger material section can be integrated into a blank to reinforce a specific area without adding a separate reinforcement part.
One of the main advantages is more targeted material utilization.
Instead of selecting one thick or high-strength sheet for the entire component, manufacturers can use different materials where their properties are actually required.
Thinner material can be used in lower-load areas while stronger material remains in areas requiring greater structural performance.
This can reduce the weight of the finished part.
Material strength can be distributed according to the expected loads on the component.
This allows a component to combine high-strength zones with areas designed for formability.
Multiple material sections can be combined before forming, potentially reducing the number of separate components required in the final assembly.
When material zones are integrated into one blank before stamping, some reinforcement and joining operations after forming may be reduced.
For suitable high-volume applications, TWB manufacturing can provide a cost effective approach by reducing material consumption, component count, and selected downstream operations.
The actual economic benefit depends on material prices, production volume, welding cost, forming requirements, and the design of the finished part.
Both welded blank and welded coils technology can combine different material sections, but they are supplied and processed differently.
| Feature | Welded Blank | Welded Coils |
|---|---|---|
| Material format | Individual blank | Continuous coil |
| Typical process | Weld, blank, then form | Continuous downstream processing |
| Production environment | Blank-based stamping | Coil-based automated production |
| Material combination | Different sheets | Different strip sections |
| Typical use | Specific stamped parts | High-volume continuous production |
The appropriate solution depends on the press line, production volume, blank geometry, automation system, and downstream processing requirements.
Tailored tubes use a similar material optimization principle but are designed for tubular components rather than flat blanks.
Tailored tubes can combine different sheet materials or thicknesses before or during tube-forming operations.
Tailor welded blanks are primarily associated with flat sheet components that are subsequently stamped or formed.
The two technologies can therefore serve different component geometries while following the same basic principle: place the appropriate material where it is needed.
The exact production processes depend on the component and material combination, but a typical manufacturing route includes:
Material specification → cutting → edge preparation → positioning → laser welding → weld inspection → blanking → stamping/forming → finished part inspection
Each stage affects the quality of the final component.
Material preparation determines dimensional accuracy. Welding determines joint quality. Forming determines the final geometry and mechanical performance.
For automotive production, the entire process should be validated before high-volume manufacturing begins.
Quality control for tailor welded blanks can include inspection of both the base materials and the welded joint.
Typical checks include:
Inspection requirements should be established according to the application, material combination, customer specifications, and applicable automotive standards.
The objective of TWB manufacturing is not simply to produce a good weld. The welded material must also perform correctly throughout the forming process.
After welding, the blank is transferred to stamping, deep drawing, hot forming, or another forming operation.
The final finished part should meet the required dimensional, mechanical, surface, and assembly specifications.
For this reason, weld development and forming development should be considered together rather than treated as completely separate operations.
When evaluating TWB companies, manufacturers should consider both welding capability and downstream forming knowledge.
Important factors include:
A supplier with experience in material selection, welding, blank preparation, and forming can provide a more complete solution for complex TWB projects.
Tailor welded blank manufacturing is the process of joining two or more sheet materials with different thicknesses, grades, or properties before forming. Laser welding is commonly used to create the welded joint.
A welded blank is a sheet metal blank made by joining two or more sheet sections together. The sections may have different thicknesses, steel grades, or strength levels.
TWB stands for Tailor Welded Blank. It refers to a blank produced by welding different sheet materials together according to the requirements of the final component.
Common materials include mild steel, high strength steel, advanced high-strength steel, galvanized steel, and selected stainless steel grades. Cold-rolled sheet is also widely used as a starting material.
Laser welding provides a concentrated heat source and can produce accurate, consistent welds with a relatively narrow heat-affected area. It is also suitable for automated production.
Yes. Different sheet thicknesses can be combined in one tailored blank. The welding parameters and forming process must be developed for the specific material and thickness combination.
A conventional blank generally uses one material specification throughout the sheet. A tailored blank combines different material specifications so that thickness and strength can be distributed according to the component requirements.
Yes. High strength steel and advanced high-strength steels can be used in TWBs when their welding, forming, and mechanical properties are suitable for the application.
Cold rolling produces steel sheet with controlled thickness, surface quality, and mechanical properties. Cold-rolled sheets can be selected as the base materials for tailor welded blank production.
Yes. Tailor welded blanks can be used for deep drawing when the materials, weld properties, weld-line location, and forming conditions are suitable for the component.
Welded coils are continuous coil products made by joining different steel strip sections. They can be integrated into automated blanking and forming production lines.
Tailored tubes are tubular components made using different material sections or thicknesses to meet local performance requirements. They apply the same material optimization concept to tubular structures.
Common applications include door inner panels, pillars, floor components, body side structures, wheel housings, and structural reinforcement components.
They can be cost effective for suitable applications, particularly in high-volume production. Potential savings can come from lower material consumption, reduced component weight, part integration, and fewer secondary joining operations.
It allows engineers to use thicker or stronger material only in areas that require it while using thinner or more formable material elsewhere. This targeted approach can improve material utilization and reduce unnecessary material.
Consider the supplier's laser welding capability, material range, thickness range, welding accuracy, inspection systems, production capacity, forming experience, quality controls, and experience with automotive applications.
The welded blank is normally transferred to a forming operation such as stamping or deep drawing. It is then processed into the required finished part and inspected against the component specifications.
Tailor welded blank manufacturing combines different sheet materials into one engineered blank before forming. Through laser welding, manufacturers can join different thicknesses, grades, and strength levels to create a blank suited to the requirements of the final component.
The technology supports better material utilization, weight reduction, local strength optimization, and part integration. It can be applied to automotive components such as the door inner panel, pillars, floor structures, wheel housings, and reinforcement parts.
For manufacturers evaluating TWB solutions, the material combination, weld-line design, forming process, production volume, and required finished part performance should be considered together. This provides a practical basis for selecting the appropriate manufacturing route and supplier.
