Annual Output Value
Annual welding & splicing capacity
Annual Blanking Capacity
| Material | EG, GI, CR & AHSS Steel |
| Thickness | 0.5–3.2 mm |
| Blank Length | 200–1500 mm |
| Finished Length | 400–3000 mm |
| Weld Length | 150–2200 mm |
| Features | ABB Robotic Loading & Unloading, Weld Seam Tracking & Online Inspection |
| Core Components | Trumpf Laser Welding Technology with Soudronic Welding System |
| Material | EG, GI, CR & AHSS Steel |
| Thickness | 0.5–3.0 mm |
| Blank Length | 120–900 mm |
| Finished Length | 240–1800 mm |
| Weld Length | 120–550 mm |
| Features | Trumpf Laser Welding Technology with Soudronic Welding System |
| Material | EG, GI, CR & AHSS Steel |
| Thickness | 0.5–3.2 mm |
| Blank Length | 120–1700 mm |
| Finished Length | 240–3400 mm |
| Weld Length | 120–2200 mm |
| Features | Weld Seam Tracking & Online Inspection |
| Core Components | Trumpf Laser Welding Technology with Soudronic Welding System |
| Material | Coated, EG, GI, CR & AHSS Steel |
| Thickness | 0.5–3.0 mm |
| Blank Length | 120–900 mm |
| Finished Length | 240–1800 mm |
| Weld Length | 120–550 mm |
| Wire Diameter | 1.0–1.2 mm |
| Gap Range | 0–2 mm |
| Features | Standard & Filler Wire Welding |
| Material | CR, GI & AHSS Steel |
| Strength | YS 120–480 MPa, TS 250–700 MPa |
| Thickness | 0.5–2.5 mm |
| Width | 800–1850 mm |
| Coil Weight | 25 t |
| Coil I.D. | Ø508 / Ø610 mm |
| Coil O.D. | Ø800–2000 mm |
| Feed Length | 300–4000 mm |
| Feed Accuracy | ±0.3 mm |
| Table 1 | 2750 × 4600 × 820 mm |
| Table 2 | 2750 × 4600 × 1000 mm |
| Max Stack Height | 1100 mm |
| Material | CR, GI & AHSS Steel |
| Strength | YS 120–480 MPa, TS 250–700 MPa |
| Thickness | 0.5–2.0 mm |
| Width | 400–1200 mm |
| Coil Weight | 15 t |
| Coil I.D. | Ø508 / Ø610 mm |
| Coil O.D. | Ø600–1600 mm |
| Feed Accuracy | ±0.3 mm |
| Work Table | 2400 × 1600 mm |
| Max Stack Height | 1000 mm |
Erichsen Cupping Tester (BT-100W)

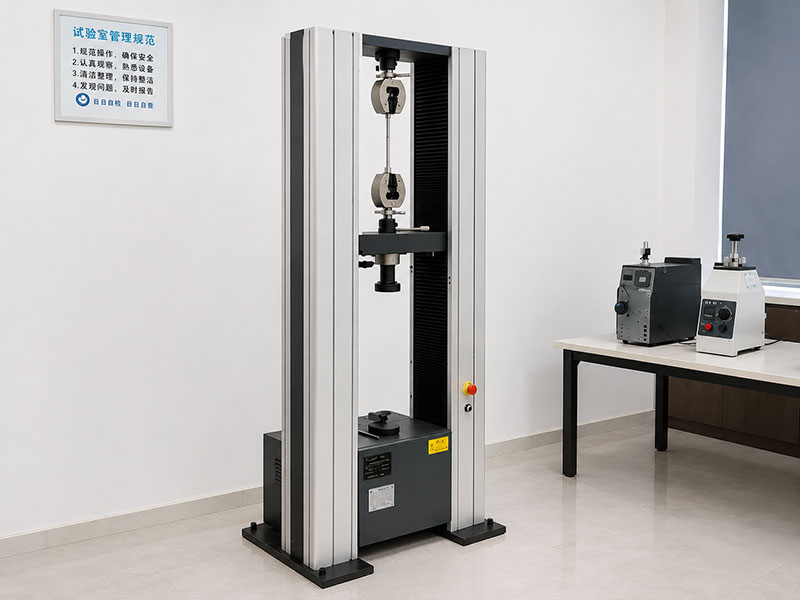

Universal Tensile Testing Machine (WDW-50B)

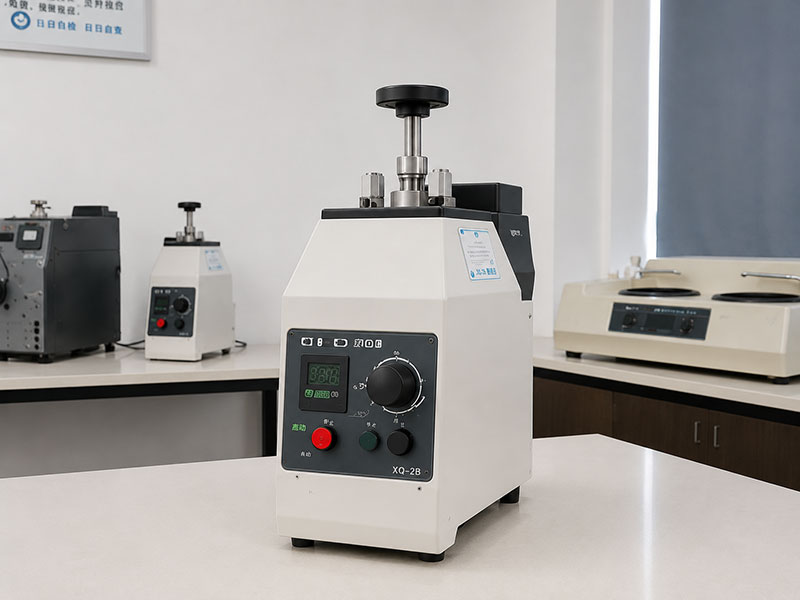

Metallographic Sample Mounting Press (XQ-2B)

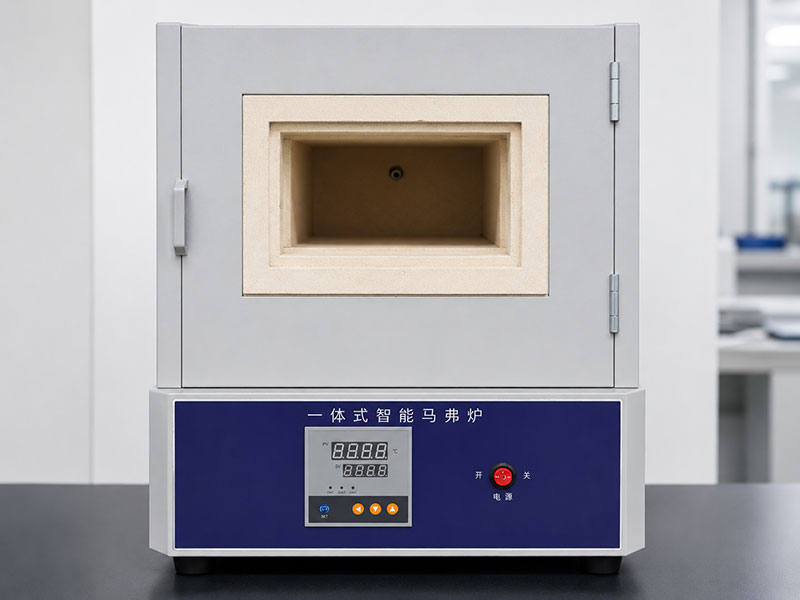

Intelligent High-Temperature Resistance Furnace

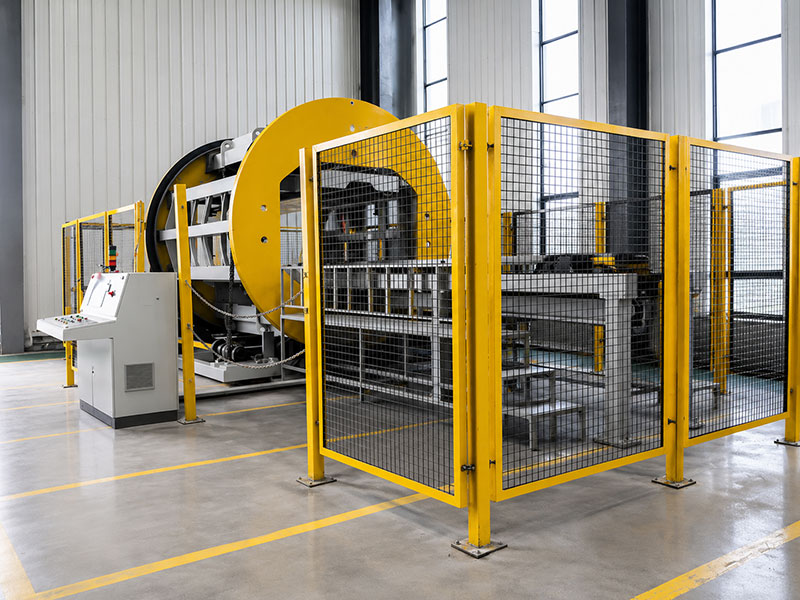

Panel Turning Machine

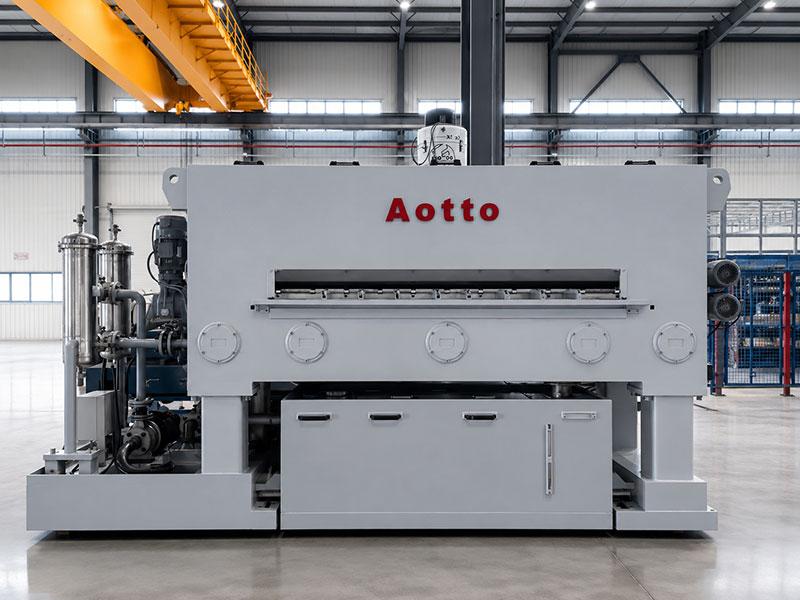

Industrial Cleaning Machine
